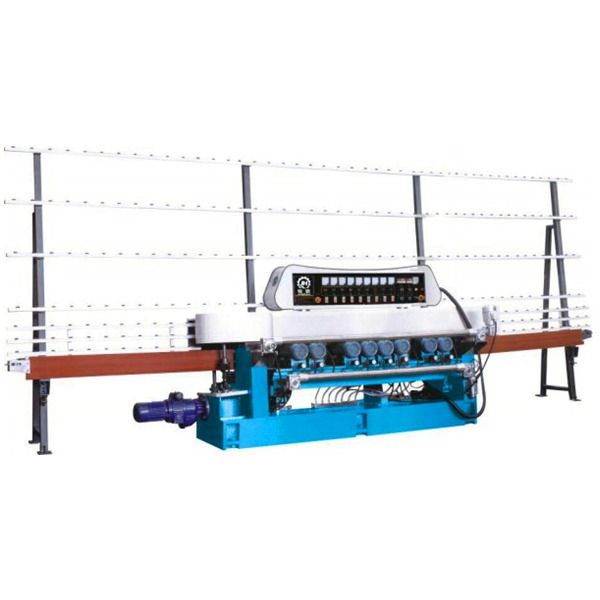

玻璃直线斜边机

描述：

●适用于不同尺寸和厚度的平板玻璃直线斜边磨削加工，斜边加工精度高，效率快。●粗磨、精磨、抛光一次加工完成，抛光后磨削面光洁度与镜面一致，对角度**。

●底座、大梁、摆架、立柱、磨头座等为优质铸件，高温退火处理，减震性能好、耐磨、抗变形。

●镶条40cr钢为优质合金钢，前后夹板55度高频淬火达到其坚硬耐磨程度，具有超强耐磨、不易变形、运行平稳等特点。

●coarse grinding、fine grinding and polishing can be completed in one time, ensuring the accuracy and polishing brightness achieving to the mirror effect.

●The base、beam、swing frame、upright column and Grinding head are of casting materials (annealed to prevent deformation).They have extreme resistance to abrasion and deformation, as well as the best shock absorbing properties.

●The beveling grinding head motor is from the international brand:ABB, Electric is from Schneider, and it also has Aluminum alloy scaffolding line and Synchronous belt transmission.

●It is the best glass grinding equipment for processing glass mosaic、craft glass 、decoration and furniture glass,doors and windows,bathroom mirror and cosmetic mirro, it is a machine with multi - use.

●PLC and touch screen is optionally available,which can automatic control the thickness,residual thickness and bevel width.

**加工尺寸	2500mm×2500mm
**小加工尺寸	100mm×100mm
玻璃加工厚度	3mm-19mm
玻璃传送速度	0.5m/min-5m/min
斜边**宽度	40mm
斜边角度	0~30°
功率	21.5KW
重量	4000kg
外形尺寸	7000mm×1300mm×2500mm
