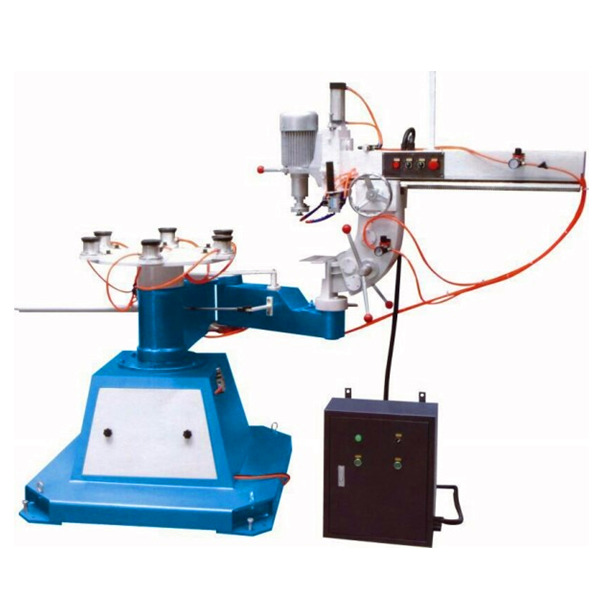

异形玻璃内外圆磨边机

描述：

●适用于加工圆形、椭圆形及异形玻璃圆边、鸭咀边、方边、斜边的磨削、抛光。

●采用真空泵将玻璃吸附在吸盘上，配电机驱动卫星转盘旋转，转盘旋转速度可在工作时任意调速；●可安装三个磨轮进行粗、精磨和抛光。磨削斜边时，安装碗形磨轮，将磨头向后倾斜，调节斜面角度，以端面磨削。

●Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle, oval and irregular flat glass.

●The processed glass is adsorbed onto a vacuum sucker, a spinning disc or an independent satellite disc, the speed of the spinning disc is adjustable.

●When grinding peripheries, coarse grinding, refine grinding and polishing are alternatively done by three grinders. when grinding hypotenuses, the angle of the grinder on the bowel-shape wheel can be obliquely adjusted to fit the ground angle for grinding.

技术参数：

玻璃加工厚度	3～21mm
玻璃回转直径	100mm～2100mm
斜边角度	0°～20°
**斜边宽	35mm
工作台转速	0.8～4r/min
独立转盘转速	1.2～6r/min
总功率	2.6KW
总重量	1000kg
外形尺寸	1300mm×1300mm×1700mm
